Pump length:
1005mm
Liquid inlet position:
Bottom

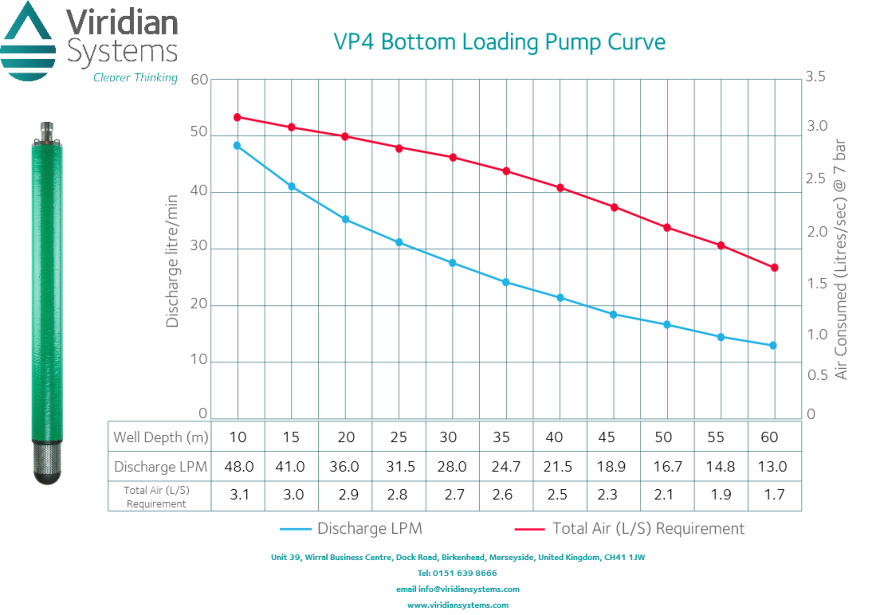

Max flow rate:
>2880 l/hr
Pump discharge cycle:
0.9 - 1.1litres
Pump weight:
7.5kg
Pump trigger point:
770mm
Max operating pH:
1-12
Max operating temperature:
100°C
Pump outside Diameter:
90mm
Min operating borehole diameter:
100mm
Max working depth:
130m
The
materials
of
construction
have
been
selected
for
the
harsh
environment
in
which
they
are
working,
such
as
aggressive
media,
high-temperature
and
suspended solids. For these reasons materials of construction include:
•316L Stainless Steel
•17/4 Stainless Steel
•PEEK
•PTFE (Teflon®)
•UHMW PE
•FPM (Viton®)
•PVDF (Kynar®)
•Syntactic
•Chemically coupled glass reinforced polypropylene
The
bottom
loader
is
the
standard
pump
type
in
the
VP
range.
It
fills
from
the
bottom
and
discharges
through
the
outlet
at
the
top.
Its
domed strainer arrangement allows the pump to easily bypass down well ledges and obstructions during installation.
